Rerewhara Aratohu Whakaara Mo te Elevator
| Tauira | b1 | h1 | k | n | f | g | c |
| T70/B | 70 | 65 | 9 | 34 | 8 | 6 | 6 |
| T75/B | 75 | 62 | 10 | 30 | 9 | 7 | 8 |
| T78/B | 78 | 56 | 10 | 26 | 8.5 | 6 | 7 |
| T82/B | 82.5 | 68.25 | 9 | 25.4 | 8.25 | 6 | 7.5 |
| T89-1 | 89 | 62 | 16 | 32 | 9 | 7 | 8 |
| T89/B | 89 | 62 | 16 | 34 | 11.1 | 7.9 | 10 |
| T90/B | 90 | 75 | 16 | 42 | 10 | 8 | 10 |
| T114/B | 114 | 89 | 16 | 38 | 11 | 8 | 9.5 |
| T127-1/B | 127 | 89 | 16 | 45 | 11 | 8 | 10 |
| T127-2/B | 127 | 89 | 16 | 51 | 15.9 | 12.7 | 10 |
| T140-1/B | 140 | 108 | 19 | 51 | 15.9 | 12.7 | 12.7 |
| T140-2/B | 140 | 102 | 28.6 | 51 | 17.5 | 14.5 | 17.5 |
| T140-3/B | 140 | 127 | 31.75 | 57 | 25.4 | 17.5 | 19 |

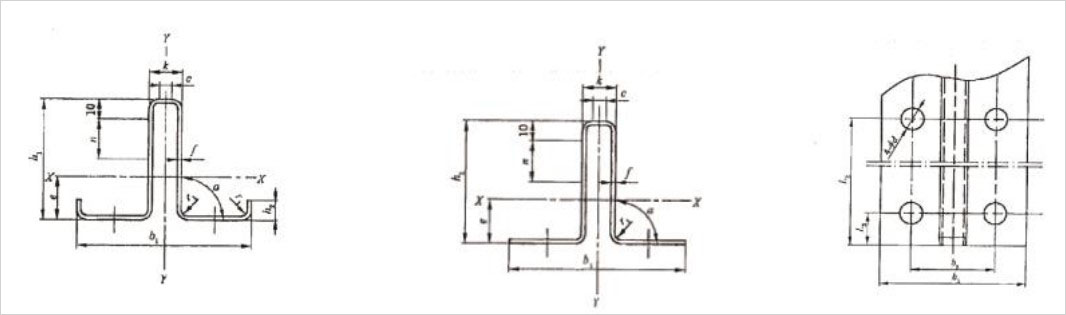

| Tauira | b1 | c | f | h1 | h2 | k | n |
| TK3 | 87±1 | ≥1.8 | 2 | 60 |
| 16.4 | 25 |
| TK5 | 3 | ||||||
| TK3A | 78±1 | ≥1.8 | 2.2 | 60 | 10±1 | 16.4 | 25 |
| TK5A | 3.2 |
1. Rererangi Aratohu Elevator Miihini
2. Rerewhara Aratohu Elevator Te Matao
3. Rererangi Aratohu Elevator Whakaritea
4. Te Rere Aratohu Whakaoho Hollow
5. He pereti reriwe arataki ararewa matao, he pereti reriwe arataki miihini miihini, he pereti ika matotoru motuhake, he pereti o te wahanga T, he topenga hanga, he rawhi reti, he topenga reti, he-t.
6.Paerewa: ISO 7465.
7.Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A.
8.Packing: Ko o tatou arai arataki kei roto i nga paihere, me nga uhi whakamarumaru i nga pito e rua, a ko ia paihere ka whakakiia ki te papanga kirihou. Ka taea hoki e matou te kiki kia rite ki o hiahia.
9.Ka taea e matou te whakarato i nga raina aratohu tohu penei i te MARAZZI, etc.
Ko te reriwe arataki ararewa he ara haumaru mo te ararewa ki te haere ki runga, ki raro i roto i te ara hikoi, me te whakarite kia neke ake, heke iho te motuka me te taumaha. Ka honoa e te reera arahi te pereti me te awhi arataki ki te pakitara ararewa hei arahi mo te waka ararewa me te taumaha. Ko te mahi tautoko a te caliper haumaru i te wa e pakaru ana tetahi waahanga nui o te punaha ararewa. Ko te reriwe arataki e whakamahia nuitia ana i roto i nga ararewa he reera arataki ahua "T". Ko nga ahuatanga penei i te pakari kaha, te pono nui, te haumaru me te utu iti. Me maeneene te waka rererangi arataki, kia kore e kitea te ahua koretake. I te mea ko te reera kaiarahi ko te reera waka o te hu kaiarahi me nga taputapu haumaru i runga i te waka ararewa, me whakarite te waatea i te wa o te whakaurunga. I taua wa ano, me kawe te reriwe arataki ki te aukati i te ararewa i te wa e pa ana te tere o te ararewa, na reira kaore e taea te warewarehia.
Kua wehea nga reera arataki arai ki: arai arataki totoka me nga reera arataki hollow.
Ko te reera arataki totoka he reriwe arahi miihini, he mea hanga ma te miihini i te mata o te kaiarahi me te hono i nga waahanga o te tohu reina arahi. Ko tana kaupapa ko te whakarato i nga kaiarahi mo te mahi o te waka ararewa i te wa e mahi ana te ararewa. Ka whakamahia ano te reera arataki totoka iti mo te arataki taumaha. He maha nga korero mo te tereina arataki e rite ana ki te whanui o te papa reirangi kaiarahi, ka taea te wehewehe ki T45, T50, T70, T75, T78, T82, T89, T90, T114, T127, T140, etc.

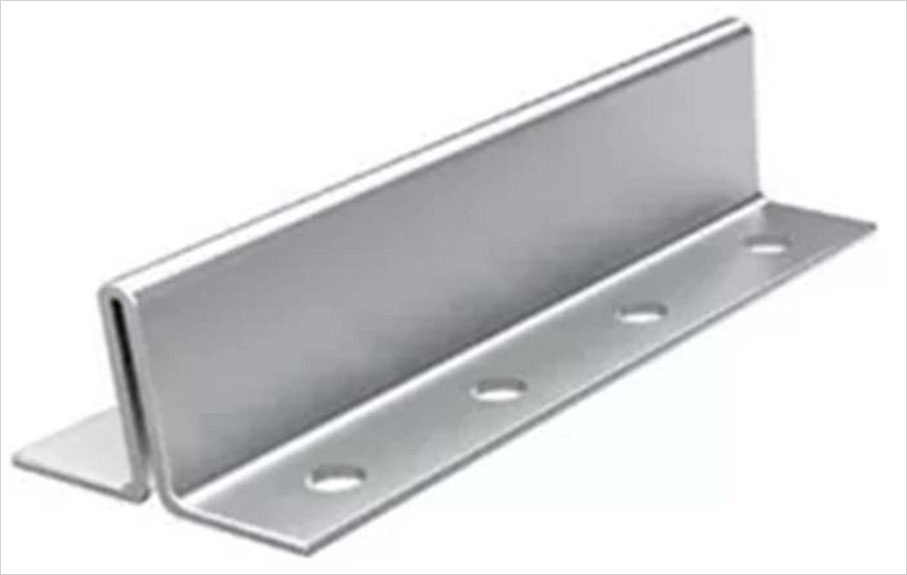

Ko nga reera arataki hollow he matao-hangaia he reera arataki hurihuri he 2.75mm me te 3.0mm te matotoru. He mea hanga matao mai i nga pereti porotaka na roto i nga kohanga whakawhiti-maha. Ka whakamahia te nuinga ki te arahi i te taumahatanga i te wa e mahi ana te ararewa. Ka taea te wehewehe i nga reera arataki tuwhera ki nga taha totika me nga taha flanged i runga i te ahua o te mata mutunga o te reera arahi, ara ko TK5 me TK5A.
